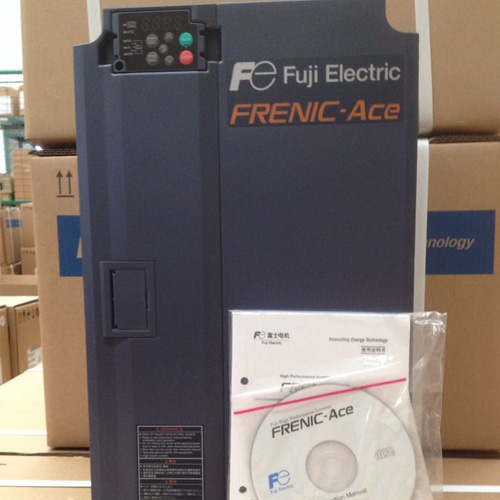

FRENIC-ACE new product Fuji inverter
New generation Fuji inverter with future mission
New Standard Inverter
High performance Fuji inverter
FRENIC-ACE new products
1. Support for multiple uses
FRENIC-ACE is the new generation standard frequency converter, which is suitable for many fields such as fans, pumps and special machines.
ACE series Fuji inverter can choose the most suitable and minimum size inverter according to its usage.
According to the load condition, the ambient temperature supports 4 fixed points.
Two, custom logic
Standard supports frequency converter software customization. It can form a digital logic circuit or an analog calculus circuit with a maximum of 100 (*) steps inside the converter. Therefore, users can define the converter by themselves, such as simple logic changes or large-scale programming. It also plans to gradually launch a program template for special frequency converters for extension machines, lifts and textiles.
Standard with multiple functions
Sensorless dynamic torque vector control
Vector control with PG motor (installation of option cards, recently launched)
Sensorless vector control for synchronous machines (recently launched)
Equipped with 2 channel RS485 communication port
Equipped with detachable operation panel.
Equipped with terminal console control panel.
Three, standard configuration function security
Conforming to European safety standards. The main circuit switchgear can be simplified for safe shutdown.
The standard configuration is perfect for high-performance functions. (Safety input: 2CH, output: 1CH)
Meet the standards (application)

EN ISO 13849-1:2008, Cat.3 / PL=e IEC/EN 61800-5-2:2007 SIL3 (security function: STO)
IEC/EN 60204-1:2005/2006 parking category 0 IEC/EN 62061:2005 SIL3
IEC/EN 61508-1 to 7:2010 SIL3
Four. Design life span of 10 years.
The design life of the parts used is 10 years.
Longer maintenance cycle helps reduce operating costs.
Design life
Main circuit capacitor for 10 years (*)
Capacitor on control panel for 10 years (*)
Cooling fans for 10 years (*)
Service life bar
Ambient temperature + 40? C (104? F)
Load rate 100% (HHD specification)
80% (HND/HD/ND specification)
(*) the rated current of the ND specification is higher than the HHD specification of 2 grades, so the design life is 7 years.
